The NEWAGE range of axles has been developed to withstand the demands of the Ground Support Equipment vehicle market. Our range of axle versatility caters for an increasingly wide range of applications including belt loaders, baggage tractors, freight tow tractors and maintenance lifts. All NEWAGE GSE axles are made of durable cast iron construction without any welded joints.

The design of our drive axles incorporate inboard planetary gearing giving multiple ratio options and the use of standard wheel rims.

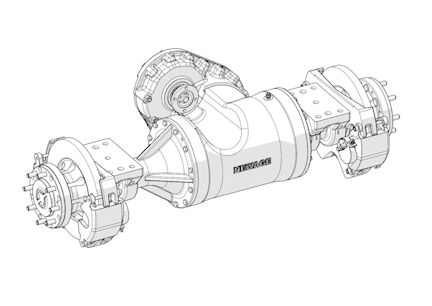

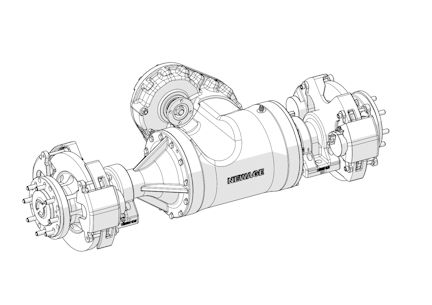

The NEWAGE axles can be configured to suit any application, as shown by the images below. Numerous axle mountings and brake configurations are available upon request.

To download a PDF copy of the 'NEWAGE GSE Axles' Literature, click here.

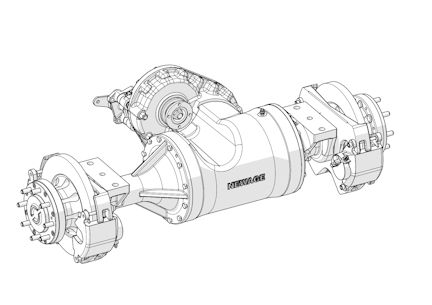

Available with & without Park Brake Underslung Leafspring or Pad Mount Overslung Leafspring or Bush Mount

6,000 lb Draw Bar Pull

NEWAGE have developed the 512 and 515 axles which are suitable for a typical 6,000 lb Draw Bar Pull application. Utilising the same gearing, NEWAGE are able to offer an 'Over the Shoulder' & Direct input configurations to suit a variety of installations.

12,000 lb Draw Bar Pull

There are the 612 and 613 axles which are suitable for a typical 12,000 lb Draw Bar Pull application. Utilising the same gearing, NEWAGE are able to offer an 'Over the Shoulder' & Direct input configurations to suit a variety of installations.

Dead Steer Axles

We also have a range of NEWAGE dead steer axles. The 216S and 512S axles with a cast constructed "I" beam has been designed & developed to withstand the demanding range of applications encountered within the ground support equipment industry.
