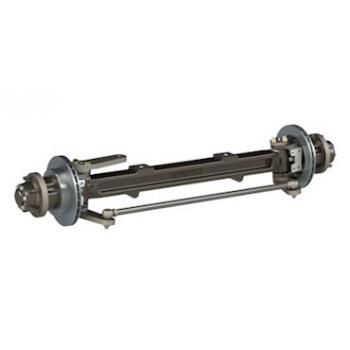

512S Dead Steer Axle

The NEWAGE 512S dead steer axle with a cast constructed "I" beam has been designed & developed to withstand the demanding range of applications encountered within the ground support equipment industry.

Max Steer Angle
55 Degrees

Nominal Axle Load Rating
5000 Lbs (2268 Kg) Based on 48in Track (1219 mm)

Single floating calipers with bolt on rotors. (Note Track increases to 52” (1320mm) with brake option)

Dry Weight
209 lbs (95KG)

Wheel Fixings
½ x 20 UNF on 5.5 PCD (139.7mm)

Standard Mounting Centres
15.48in (393.4mm) Across 3.14 in (80mm) x 3.14in (80mm) Diameter Section

Special Features
Durable solid cast iron constructed "I" beam
Durable solid cast iron steer knuckle.
Non king pin design using taper roller bearing trunnions.
Maintenance free drag link.
