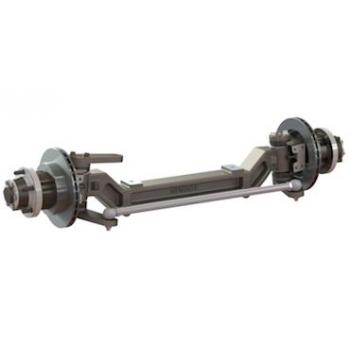

512DS Drop Centre Dead Steer Axle

The NEWAGE 512DS drop centre dead steer axle with a cast constructed "I" beam has been designed & developed to withstand the demanding range of applications encountered within the ground support equipment industry.

Max Steer Angle
40 Degrees

Nominal Axle Load Rating
5000 Lbs (2268 Kg) Based on 48in Track (1219 mm)

Single floating calipers with bolt on rotors

Dry Weight
205 lbs (93KG)

Wheel Fixings
½ x 20 UNF on 5.5 PCD (139.7mm)

Standard Mounting Centres
16.22in (412.0mm) Across 3.14 in (80mm) x 3.14in (80mm) Diameter Section

Special Features
Durable solid cast iron constructed "I" beam.
Durable solid cast iron steer knuckle.
Non king pin design using taper roller bearing trunnions. Maintenance free drag link.
