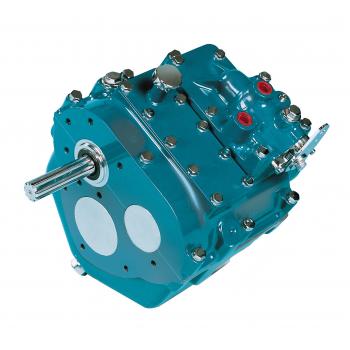

PRM280

Full hydraulic operation, lightweight, compact & rugged.

New for 2016, the PRM280 is now available with optional power take off.

The PRM280 marine gearbox is purpose built for use in both pleasure craft and commercial boats; its twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction.

The PRM280 is offered in two different configurations; power take off (PTO) (PRM280DP) and with offset output shaft (PRM280).

A choice of 1.96:1 and 2.94:1 reduction ratios is available; each will provide left-hand or right-hand propeller rotation in "ahead", making the PRM280 particularly well suited to twin engine installations.

The gearcase is constructed of high grade cast iron, internally ribbed for rigidity and strength, and consists of two separate halves to facilitate servicing, the oil pump and hydraulic control valves being externally mounted for easy accessibility.

The PRM280DP live PTO gearbox specifically designed for driving hydraulic pumps to SAEJ774C series B specification. The maximum power which can be transmitted is 22kW (29.5hp) per 1000 rpm.

The hydraulic operating system functions on normal lubricating oil of the same viscosity as that used in the engine, avoiding the need to use automatic transmission fluid, and ensures rapid response to movements of the operating lever for good boat handling. The operating lever has a positive neutral detent and is suitable for use with proprietary single lever remote control operating systems.

Robust and reliable, the hydraulic system is nevertheless provided with a mechanical lock-up device for added security, so that in the unlikely event of hydraulic failure the boat can be brought safely back to port. Access to this device is via a detachable cover located on top of the main gearcase.

A trolling valve can be fitted. This is electronically operated which allows variable speed of the propeller to zero whilst allowing a maximum engine speed of up to 1200 rpm.

Nominal Power Ratings, PRM 280 Marine Gearbox

Model

Ahead Ratio

Pleasure

Light Commercial

Heavy Commercial

kW

BHP

kW

BHP

kW

BHP

280D2

1.96:1

2.93

3.93

2.83

3.79

2.67

3.58

280D3

2.94:1

2.93

3.93

2.83

3.79

2.67

3.58

Maximum operating speeds:
4500 rev/min intermittent, 4000 rev/min continuous

Note: These powers have been measured at the engine flywheel. Ratings have been established to ensure the long trouble free life of the gearbox which should not, therefore be used at powers in excess of those shown.

Operating Pressure

Minimum - 20.00 bar (290 lb./in²), Maximum - 22.06 bar (320 lb./in²). Two tapped holes 1/8" BSP on the top, and M18 on the side of the valve block are provided so that the pressure gauge can be fitted if required.

Oil Cooling

The normal operating temperature of the oil should be in the 50°C - 80°C range and should not be permitted to exceed 90°C. An oil cooler is necessary to ensure that correct operating temperatures are maintained, and the valve block is provided with two 3/8" BSP connectors to allow it to be fitted.

Propeller Thrust

Both ahead and astern thrust is carried by the output shaft bearings which are of adequate capacity for all factory approved ratings.

Propeller Free Wheeling

The PRM280 output shaft can be rotated continuously with the gearbox in neutral. It is therefore not necessary to fit a propshaft brake in such applications.

Approximate Weight & Oil Capacity

Approximate dry weight

PRM280D

48kg (106lb) excluding adaptor, drive coupling and oil cooler

PRM280DP

54kg (120lb) excluding adaptor, drive coupling and oil cooler

Oil capacity

1.5 litres (2.64 pints) plus the amount require to fill the cooling circuit


Flexible Input Couplings for PRM280D & PRM280DP

Part Number

Outside Diameter

Mounting Hole Pattern

Remarks

mm.

in.

No.

Diameter

Pitch Circle Dia.

mm

in

mm

in

MT1224

241.3

9.500

8

8.74

0.344

222.3

8.750

SAE 7 ½ in

MT1222

314.3

12.375

6

Multi Punched, Dimensions on application



8

9.53

0.375

295.3

11.625

SAE 10 in

MT1162

352.4

13.875

8

10.99

0.433

333.4

13.125

SAE 11 ½ in

MT1213

362.0

14.250

6

8.13

0.320

295.3

11.625

Perkins 4-236

6

Multi Punched, Dimensions on application



MT4911

352.4

13.875

8

10.99

0.433

333.4

13.125

SAE 11 ½ in
High Deflection

MT4912

362.0

14.250

6

8.13

0.320

295.3

11.625

Perkins 4-236

6

Multi Punched, Dimensions on application

High Deflection

MT4913

314.3

12.375

6

Multi Punched, Dimensions on application



8

9.53

0.375

295.3

11.625

SAE 10 in
High Deflection

MT4914

241.3

9.500

8

8.74

0.344

222.3

8.750

SAE 7 ½ in
High Deflection

MT1468

362.0

14.250

6

Multi Punched, Dimensions on application

(for 260C)


Adaptor Flanges For PRM280D & PRM280DP

Part Number

Description

Weight

kg

lb

MT8074S/A

SAE2 adaptor flange

13.0

28.7

MT854S/A

SAE3 adaptor flange

11.0

24.3

MT1210S/A

SAE4 adaptor flange

10.0

22.0

MT1209S/A

SAE5 adaptor flange

7.0

15.4

MT1426S/A

B/W (Velvet Drive) adaptor flange

4.3

9.5



Other Accessories For PRM280D & PRM280DP

Part Number

Description

Weight

kg

lb

MT913S/A

Oil cooler

1.2

2.6

MT915

Oil pipes (pair)

0.5

1.1

MT784

Oil cooler mounting bracket

0.2

0.4

MT771

Tail shaft half coupling (pilot bored)

2.5

5.5

MT1104

Tail shaft flexible coupling

1.5

3.3

MT0214

Neutral safety start switch

0.04

0.1

MT5036

Oil pressure gauge (direct mounting)

0.1

0.2

MT0579

Power take off

6.0

13.2



Service Classification Definitions - Pleasure

Limited to planing hull pleasure craft; operation at full engine throttle should not exceed 5% of total time, with balance of usage at 90% of full throttle engine speed, or less. Maximum operation 500 hours per year. The selection of PRM marine transmissions according to this classification for any commercial boat, or in sport-fishing charter boats or in long range pleasure cruisers, is not approved.

Service Classification Definitions - Light Commercial

Planing or semi-displacement craft used in pleasure or commercial applications may qualify for light commercial rating if annual usage is less than 1500 hours and full throttle operation is limited, with most operating time at partial throttle.

Service Classification Definitions - Heavy Commercial

PRM Newage Limited recommends that all displacement and semi-displacement craft used for commercial applications should be classed as heavy commercial duty. In vessels of this type (including trawlers, purse seiners, lobster and crab boats, tugs, ferries, offshore supply boats etc.) the marine gearbox is expected to work at full governed engine speed. The power setting of the engine must be known and must be within the gearbox's permissible heavy commercial rating.

Important Note
  1. It is essential for the engine, transmission model, reduction ratio and propeller size to be correctly matched so that the engine can attain its rated speed appropriate to the relevant service classification without labouring.
  2. It is also necessary to ensure the torsional compatibility of the complete propulsion system from engine through to propeller, since disregarding this may result in gear noise, particularly at low speed operation, and may even result in damage to the engine as well as the transmission components.

PRM Newage Ltd will provide all possible information and assistance to help find solutions to potential torsional problems, but it is the ultimate responsibility of the person assembling the drive and driven equipment to ensure that they are torsionally compatible.
