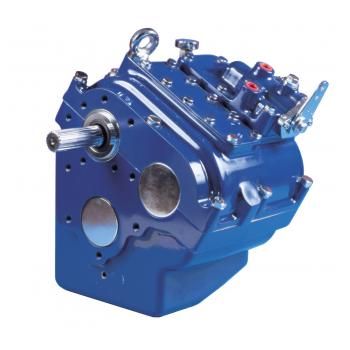

PRM750

Full hydraulic operation: offset or down angle output shaft

The PRM750D and PRM750A marine gearboxes are purpose built for use in both pleasure craft and commercial boats; the twin countershaft design provides separate oil-operated multi-disc clutches (which need no adjustment) for ahead and astern drive allowing full rated power to be transmitted continuously in either direction.

To cater for the widest possible variety of boats the PRM750 is offered in two different configurations : with offset output shaft (PRM750D) and 8° down angle output shaft (PRM750A). Reduction ratios available are 1.09:1, 1.459:1, 1.935:1, 2.565:1, 2.904:1 and 3.952:1 (3.952:1 reduction is not available on down-angle gearboxes) all of which can provide either left-hand or right-hand propeller rotation in "ahead", making the gearbox particularly well suited to twin engine installations.

The robust and reliable hydraulic system uses lubricating oil of the same viscosity as that used in the engine, and helps ensure good boat handling by its rapid response to movements of the operating lever.

The operating lever has a positive neutral detent which assists the setting-up of the remote control operating unit whilst for added security, to guard against the unlikely event of hydraulic failure all gearboxes incorporate a mechanical lock-up device so the boat can be brought safely back to port.

The gearcase is constructed of high grade cast iron, internally ribbed for rigidity and strength, and consists of two separate halves to facilitate servicing, the oil pump and hydraulic control valves being externally mounted for easy accessibility.

A special feature of the PRM750D & PRM750A is the direct drive power take-off which is available as an optional extra; this will power a hydraulic pump to SAE J744C type 'B' specification, thus providing an economical and space efficient means of driving on-board machinery.

An electronically operated trolling valve can be fitted, which will allow variable speed of the propeller to zero whilst allowing a maximum engine speed of up to 1200 rpm.

Nominal Power Ratings, PRM750D Marine Gearbox (Drop Centre)

Model

Ahead Ratio

Pleasure

Light Commercial

Heavy Commercial

kW

BHP

kW

BHP

kW

BHP

750D1

1.09:1

7.85

10.52

6.07

8.13

5.86

7.85

750D1.5

1.459:1

750D2

1.935:1

7.07

9.84

5.68

7.85

5.55

7.43

750D2.5

2.565:1

750D3

2.904:1

5.96

8.00

5.60

7.50

5.24

7.02

750D4

3.952:1

Maximum operating speeds: 4500 rev/min intermittent, 4000 rev/min continuous

Nominal Power Ratings, PRM750A Marine Gearbox (Angle Drive Only)

Model

Ahead Ratio

Pleasure

Light Commercial

Heavy Commercial

kW

BHP

kW

BHP

kW

BHP

750A1

1.09:1

7.17

9.62

5.68

7.62

5.39

7.23

750A1.5

1.459:1

750A2

1.935:1

7.07

9.48

5.68

7.62

5.39

7.23

750A2.5

2.565:1

750A3

2.904:1

5.96

8.00

5.60

7.51

5.24

7.02

Maximum operating speeds: 4500 rev/min intermittent, 4000 rev/min continuous.

Note: These powers have been measured at the engine flywheel. Ratings have been established to ensure the long trouble free life of the gearbox which should not, therefore be used at powers in excess of those shown.

Working Oil Pressure

Minimum - 30.34 bar (440 lb./in²), Maximum - 33.44 bar (485 lb./in²). Two tapped holes 1/8" BSP on the top, and M18 x 1.5 on the side of the valve block are provided so that the pressure gauge can be fitted if required.

Oil Cooling

The normal operating temperature of the oil should be in the 50°C - 80°C range and should not be permitted to exceed 90°C. An oil cooler is necessary to ensure that correct operating temperatures are maintained, and two 3/8" BSP connections are provided on the valve block to allow it to be fitted. The size of the cooler required depends on a number of factors including the transmitted horsepower, operating speed, duty cycle, inlet water temperature and ambient temperature.

Propeller Thrust

Both ahead and astern thrust is carried by the output shaft bearings which are of adequate capacity for all factory approved ratings.

Approximate Weight & Oil Capacity

Gearbox

Approximate dry weight

Oil capacity

PRM750D

72kg (159lb)

excluding adaptor, drive coupling and oil cooler.

2.5 litres (4.40 pints)

plus the amount required to fill the cooling circuit

PRM750D4

80kg (176lb)

3.5 litres (6.16 pints)

PRM750A

90kg (198lb)

3.0 litres (5.28 pints)

Flexible Input Coupling for PRM750D & PRM750A

Part Number

Outside Diameter

Mounting Hole Pattern

Remarks

mm.

in.

No.

Diameter

Pitch Circle Dia.

mm

in

mm

in

MT1358

314.4

12.375

6

8.13

0.320

200.0

7.875

SAE 10 in

6

8.13

0.320

250.0

9.853

6

8.13

0.320

269.9

10.625

6

8.13

0.320

273.1

10.750

8

9.53

0.375

295.3

11.625

MT1359

352.4

13.875

8

10.99

0.433

333.4

13.125

SAE 11 ½ in

MT1357

362.0

14.25

6

8.13

0.320

200.0

7.785



6

8.13

0.320

210.0

8.268

6

8.13

0.320

263.5

10.375

6

8.13

0.320

269.9

10.625

6

8.13

0.320

276.2

10.875

6

8.13

0.320

288.9

11.375

6

8.13

0.320

295.3

11.625

Perkins 6-3544

6

8.74

0.344

304.8

12.000

Ford 2720 Series

6

8.13

0.320

314.3

12.375

6

9.53

0.375

320.7

12.625

6

8.13

0.320

342.9

13.500

6

9.53

0.375

342.9

13.500

Adaptor Flanges For PRM750D & PRM750A

Part Number

Description

Weight

kg

lb

MT1212S/A

SAE2 adaptor flange

13.0

28.7

MT1211S/A

SAE3 adaptor flange

11.0

24.2

MT1216S/A

SAE4 adaptor flange

9.6

21.2

MT1563S/A

B/W (Velvet Drive) adaptor flange

(not suitable for 750D4 3.952:1 ratio gearbox)

4.2

9.25


Other Accessories For PRM750D & PRM750A

Part Number

Description

Weight

kg

lb

MT4613S/A

Oil cooler kit:

PRM750D engines up to 130 kW

PRM750A engines up to 105 kW

1.00

2.20

MT4611S/A

Oil cooler kit:

PRM750D engines over 130 kW

PRM750A engines over 105 kW

1.70

3.75

MT915

Oil pipes (pair)

0.50

1.10

MT784

Oil cooler mounting bracket

0.20

0.50

MT783

Tail shaft half coupling (pilot bored)

5.60

12.30

MT1105

Tail shaft flexible coupling

2.50

5.30

MT0193

Live PTO, for SAE ‘B’ hydraulic pump

6.90

15.20

MT0214

Neutral safety switch

0.04

0.10

MT5036

Oil pressure gauge (direct mounting)

0.10

0.20

MT0210

8° Angle drive unit (supplied loose)

17.70

38.94


Service Classification Definitions - Pleasure

Limited to planing hull pleasure craft; operation at full engine throttle should not exceed 5% of total time, with balance of usage at 90% of full throttle engine speed, or less. Maximum operation 500 hours per year. The selection of PRM marine transmissions according to this classification for any commercial boat, or in sport-fishing charter boats or in long range pleasure cruisers, is not approved.

Service Classification Definitions - Light Commercial

Planing or semi-displacement craft used in pleasure or commercial applications may qualify for light commercial rating if annual usage is less than 1500 hours and full throttle operation is limited, with most operating time at partial throttle.

Service Classification Definitions - Heavy Commercial

PRM Newage Limited recommends that all displacement and semi-displacement craft used for commercial applications should be classed as heavy commercial duty. In vessels of this type (including trawlers, purse seiners, lobster and crab boats, tugs, ferries, offshore supply boats etc.) the marine gearbox is expected to work at full governed engine speed. The power setting of the engine must be known and must be within the gearbox's permissible heavy commercial rating.

Important Note

1.     It is essential for the engine, transmission model, reduction ratio and propeller size to be correctly matched so that the engine can attain its rated speed appropriate to the relevant service classification without labouring.

2.     It is also necessary to ensure the torsional compatibility of the complete propulsion system from engine through to propeller, since disregarding this may result in gear noise, particularly at low speed operation, and may even result in damage to the engine as well as the transmission components.

PRM Newage Ltd will provide all possible information and assistance to help find solutions to potential torsional problems, but it is the ultimate responsibility of the person assembling the drive and driven equipment to ensure that they are torsionally compatible.
