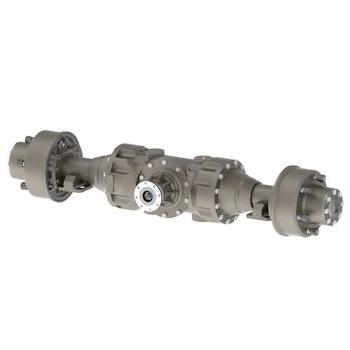

415 Series Axle

The 415 series axle is a medium sized off highway axle designed to withstand the riggours of off highway use.

Overall Axle Ratio
14.8:1

Hydrostatic Transfer Gearbox Ratio
1.53:1, 1.76:1, 2.13:1

Maximum Load Rating
5200 kg (11440 lb) based on 1475 mm wheel track and axle mountings at 960 mm centres.

Torque
Nominal output torque at both wheels is 13222 Nm (9750 lbf.ft.).

Brakes (Optional)
Maximum braking torque at both wheels: 9112 Nm (6720 lbf.ft.), based on axle ratio of 14.8:1 and two friction plates per side. Hydraulic operating pressure: 60 bar (900psi).
Drum brake option also available on request

Parkbrake (optional)
Maximum braking torque at both wheels: 9990 Nm (7368 lbf.ft.). Cable pull at axle: 2670 N (600 lbf.), operating at 180 mm centres.

Track Width
The standard track width is 1475mm, however options are readily available, including 1580mm.

Approximate weight
Model: 415PB (standard input): 166 kg (365 lb) Model: 415PBH (hydrostatic): 240 kg (528 lb)
Approximate Oil Capacity
6 litres (10.6 pints)

Options
Integral transfer gearbox with hydrostatic motor input ratios up to 2.13:1. Adapters for all major hydrostatic motor suppliers can be supplied.

Wheel Fixing Options
6 Studs : M18 thread x 2 mm pitch on 205 mm PCD, with 158/159 mm wheel spigot diameter 6 Studs: 7/8" BSF on 205 mm PCD, with 158/159 mm wheel spigot diameter. 8 Studs : M18 thread x 2 mm pitch on 275 mm PCD, with 220 mm wheel spigot diameter 8 Studs: 7/8" BSF on 275 mm PCD, with 220 mm wheel spigot diameter.

Mounting Options (Standard)
4 off 18 mm diameter holes: 150 mm by 83 mm hole centres, on rigid mounting pads, with 960 mm mounting centres.
