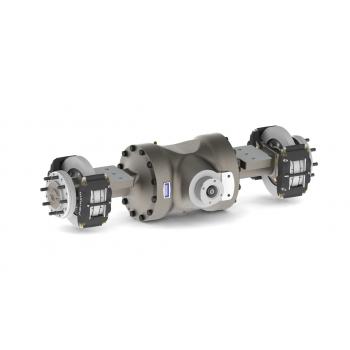

612 Axle

The NEWAGE 612 planetary double reduction rigid drive axle has been designed & developed to withstand the demanding range of applications encountered within the ground support equipment industry. The 612 can be configured to be a drop-in replacement for many existing axles in most models of baggage tractors.

Axle Ratios available:
13.2:1 / 15.8:1 / 19.7:1

Nominal Axle Load Rating:
14,300lbs (6,486Kg) based on 48in (1219mm) wheel track

Typical Drawbar Pull:
14,000lbs (62,275N)

Track Width
Standard 48in (1219.2mm). Variations available upon request.

Brakes:
Dual Caliper 4 piston hydraulic disc brakes

Dry Weight:
Approximately 727lb (330Kg)

Park Brake:
Optional (disc mounted)

Wheel fixings:
8 studs: M20 x 1.5 on 10.83in ( 275mm) PCD
or
8 studs: 9/16 x 18 UNF - 3A studs on 6.5in (165.1mm) PCD

Standard Mountings:
Between 23.5in (597mm) and 30.3in (770mm)

Input Flange:
HS1410
